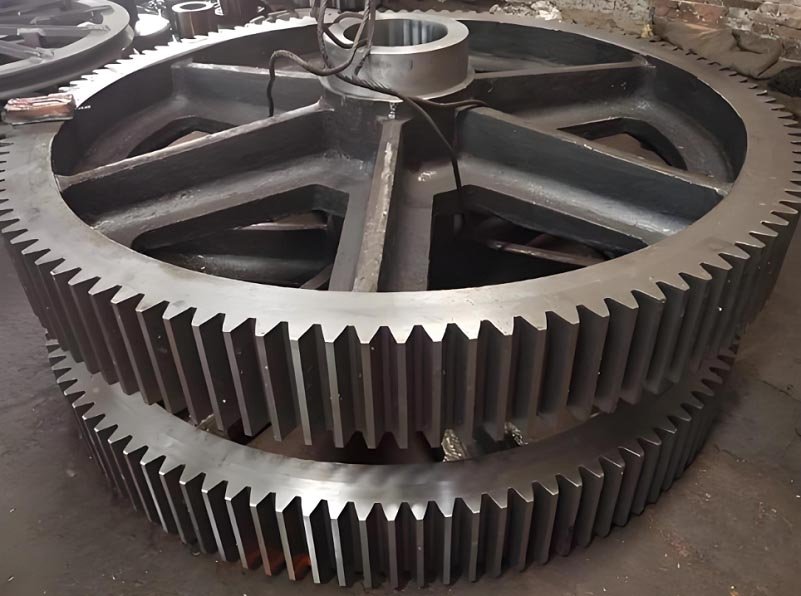

42CrMo Large Gear Forgings for Mining Equipment

Description

Large gear forgings play a vital role in heavy mining machinery as they bear huge loads and significantly influence the efficiency of power transmission, smooth operation, and lifespan of the equipment. In the harsh environments of ball mills, rotary kilns, mine hoists, and crushers, gear rings are exposed to heavy and continuous loading, abrasive dust, and frequent impacts.

We work on 42CrMo large gear forgings that are tailored to these tough working conditions. By integrating the sophisticated open-die forging with the very accurate ring rolling, we offer gear rings that have better internal quality, improved grain arrangement, and greatly increased resistance to fatigue when compared with the usual cast gears.

What Are Large Gear Forgings in Mining Machinery?

Large gear forgings serve the main transmission systems of mining machines that rely on torque transfer, rotational stability, and wear resistance.

Unlike cast gears, forged gear rings manufacture through a controlled means of plastic deformation, which enhances the grain structure and gets rid of internal defects such as porosity and shrinkage cavities. This leads to:

• Higher mechanical strength
• Improved impact resistance
• Longer operational lifespan
• Greater reliability under cyclic loading

For mining companies, where downtime can be very expensive, forged gears remain the best choice.

Why Forged Gear Rings Outperform Cast Gears in Mining Applications

The differences in performance between forged gears and cast gears are very evident in heavy mining environments.

Forged gear rings possess a closely packed and continuous grain structure, which not only enhances resistance to cracking but also helps in the even distribution of loads. On the other hand, cast gears tend to have more internal defects and areas where stress can concentrate.

Some of the major performance benefits of forged gears are:

• Up to 2× longer service life

in applications involving high load

• Greatly increased fatigue cracking resistance
• Superior capability to withstand shock and impact loads
• Lower likelihood of sudden failure

In the case of large mining equipment, to go for forged gear rings is not only a matter of material but also a matter of ‍‌reliability.

Material Options for Mining Gear Forgings

We offer a range of alloy steel grades to match different operating conditions and performance requirements:

42CrMo / 42CrMo4

A widely used high-strength alloy steel with excellent hardenability and fatigue resistance. Ideal for large gear rings subjected to heavy loads and continuous operation.

34CrNiMo6 / 34CrNi3Mo

Nickel-containing alloy steel designed for high-impact environments. Suitable for mining excavators and applications requiring superior toughness, especially at lower temperatures.

20CrMnTi

Carburizing steel with high surface hardness and a tough core. Commonly used for high-speed and heavy-duty gear systems requiring excellent wear resistance.

23CrNi3MoA

High-purity alloy steel used in specialized applications where both corrosion resistance and wear resistance are critical.

Material selection is always based on actual working conditions, load characteristics, and service life expectations.

Forging and Heat Treatment Process for Large Gear Rings

The performance of a gear forging is determined not only by the material, but also by the manufacturing process.

Forging & Ring Rolling

We adopt a combined process of open-die forging + ring rolling, carried out under strict temperature control (900–1100°C).

This process ensures:

• Directional grain flow along the gear profile
• Improved bending strength at the tooth root
• Uniform mechanical properties across the entire ring

Heat Treatment

To achieve the required balance between strength and toughness, we apply controlled heat treatment processes:

• Quenching + Tempering
  Produces a stable tempered structure with hardness typically in the range of HB 280–320
• Carburizing or Induction Hardening
  Surface hardness up to HRC 58–62 for enhanced wear resistance

These processes are selected based on application-specific requirements such as load intensity and wear conditions.

Key Advantages of Our Large Mining Gear Forgings

High Internal Quality Assurance

All forgings are manufactured in compliance with international inspection standards such as GB/T 6402 and equivalent European requirements.

• 100% Ultrasonic Testing (UT)
• Magnetic Particle Inspection (MT) for critical areas
• Strict hydrogen control to prevent embrittlement
• Controlled slow cooling to minimize internal stress

This ensures defect-free internal structure and long-term reliability.

High Precision and Stable Operation

Through precision CNC machining, we achieve:

• Radial runout ≤ 0.05 mm/m
• Tooth alignment deviation ≤ 0.03 mm/100 mm

This level of accuracy ensures smooth gear meshing, reduced vibration, and lower operational noise — critical for large rotating equipment.

Enhanced Fatigue Resistance

To address common issues such as tooth breakage and pitting, we offer shot peening treatment on gear tooth roots.

• Almen intensity: 0.4–0.6 mmA
• Introduces beneficial compressive stress
• Improves fatigue life by over 30%

This is particularly important for equipment subjected to cyclic and impact loads.

Typical Applications in Mining Equipment

Our large gear forgings are widely used in:

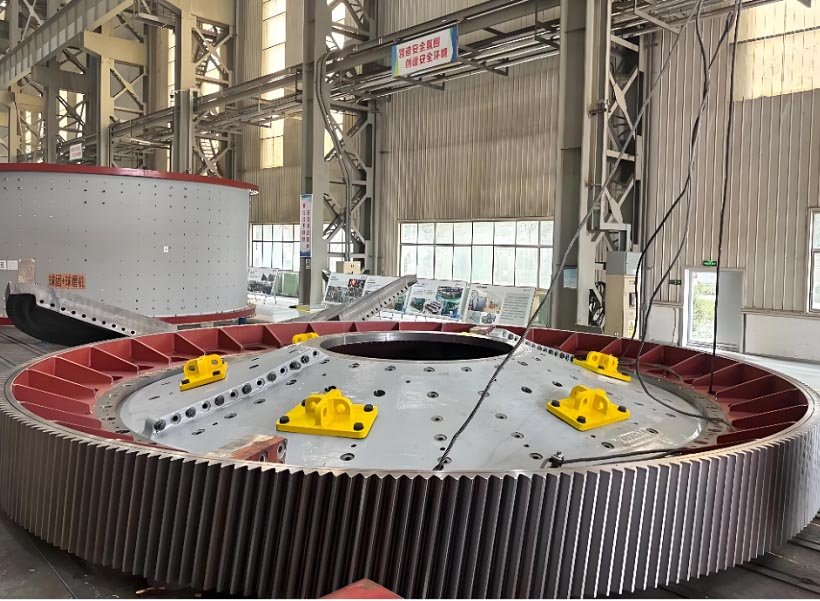

• Ball mills and rotary kilns
  Large-diameter gear rings requiring high dimensional stability and deformation resistance
• Mine hoists
  Systems with high starting torque and frequent directional changes
• Scraper conveyors
  Components exposed to continuous wear and heavy material flow
• Crushers and drilling equipment
  Gear systems that must withstand sudden impact loads and high stress conditions

Each application has unique requirements, and our engineering team provides tailored solutions accordingly.

Quality Standards and Manufacturing Capability

We utilize advanced steel refining processes including:

• Vacuum degassing (VD)
• Electroslag remelting (ESR)

These processes significantly improve steel purity and mechanical performance.

Production capability:

• Weight range: 100 kg to 30 tons
• Large diameter ring forging capability
• Custom geometry based on drawings

Custom Large Gear Forging Solutions for Mining Projects

Every mining project has unique requirements in terms of load conditions, environment, and service life expectations.

We provide fully customized solutions, including:

• Material selection based on application
• Forging process optimization
• Heat treatment design
• Precision machining
• Inspection and certification

Send us your drawings or technical specifications — our engineering team will respond with a tailored solution within 24 hours.
