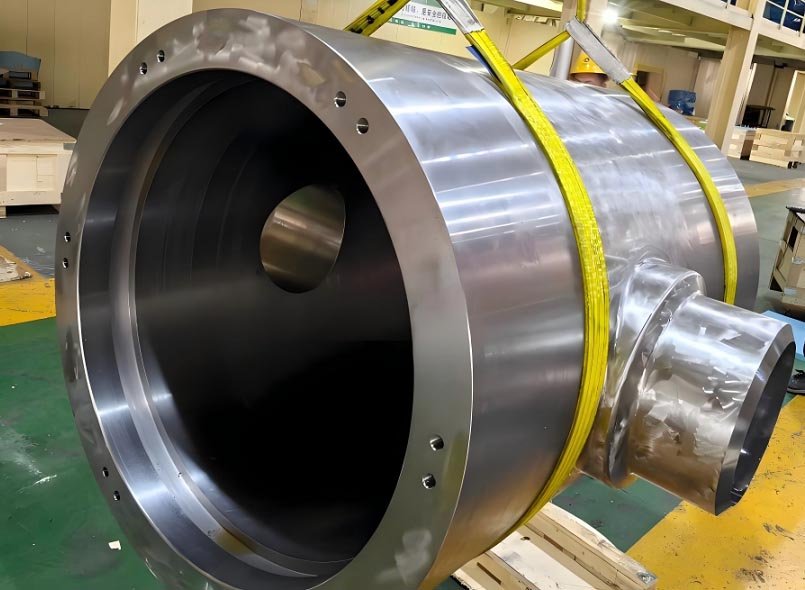

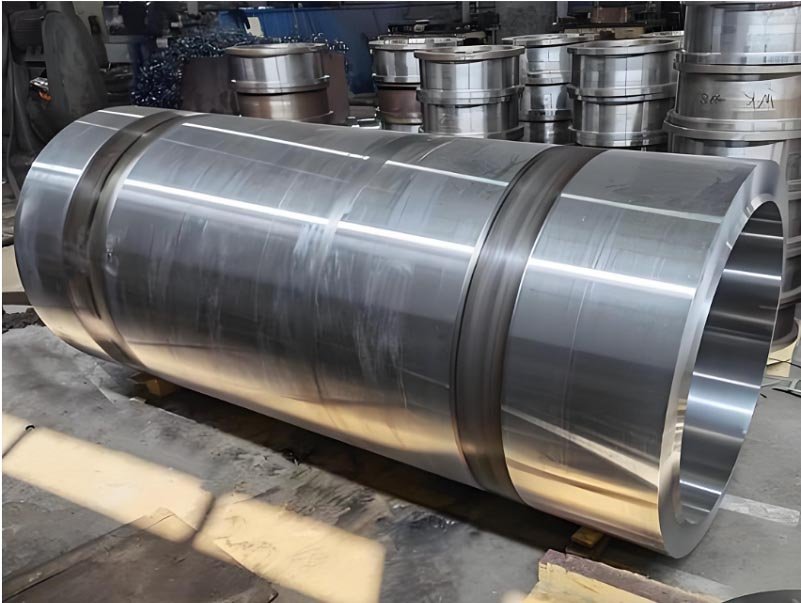

15CrMo Forged Compressor Cylinders for Petrochemical Industry
15CrMo forged compressor cylinders are among the most vital pressure-bearing components in a petrochemical plant, especially in large reciprocating and centrifugal compressors. Owing to the fact that these parts function in very hot and high-pressure environments, with exposure to chemical agents and subjected to repeated mechanical stress cycles, it becomes crucial to choose suitable materials and ensure the quality of manufacturing for their durability along the years.
Description
15CrMo forged compressor cylinders are among the most vital pressure-bearing components in a petrochemical plant, especially in large reciprocating and centrifugal compressors. Owing to the fact that these parts function in very hot and high-pressure environments, with exposure to chemical agents and subjected to repeated mechanical stress cycles, it becomes crucial to choose suitable materials and ensure the quality of manufacturing for their durability along the years.
We are a factory engaged in producing forged compressor cylinders mainly designed for petrochemical industry use. Our products enjoy extensive application in fields such as oil refining, natural gas processing, producing fertilizers, and coal chemical engineering. Apart from meeting physical strength requirements, they also have good resistance to heat and corrosion.
Compressor Cylinder Function and Working Conditions
Forged compressor cylinders make up the primary pressure-holding body in compressor systems. When running, they are in fact subject to:
– Very high pressure and temperature changes inside
– Contact with destructive gases like H₂S, CO₂, and other corrosive substances
– Mechanical stresses being repeated over and over
In such harsh environments, the cylinder should be able to hold its shape, keep its sealing function intact and show good resistance against fatigue and corrosion. Besides, in hydrogenation and gas processing plants, standards remain more isolated as the factor of hydrogen embrittlement must be taken into consideration.
Material Selection for Different Operating Conditions
The choice of materials depends on the working conditions and nature of the environment.
When it comes to medium and low pressure circumstances, low alloy steels such as 16Mn and 20MnMo could be the right choice providing good strength and easy welding.
If the equipment has to operate under severe conditions like very high temperature or very high pressure, chromium-molybdenum steels such as 15CrMo and 12Cr1MoV are the go-to materials recognizing their superior properties at elevated temperatures and ability to protect against oxidation. Typically, these steels see service in hydrogenation installations and process gas compressors.
In environments that are corrosive and include hydrogen sulfide or chlorides, stainless steels such as 0Cr18Ni9, 0Cr17Ni12Mo2, and the duplex stainless steel 022Cr22Ni5M03N provide a higher level of protection against stress corrosion cracking.
At the stage of hydrogen-rich and ultra-high pressure, materials like 2.25Cr1Mo and 2.25Cr1Mo0.25V are geared towards essential equipment such as hydrogen compressors.
Manufacturing Standards and Quality Control
We produce our forged compressor cylinders in line with several internationally recognized standards such as ASTM, GB, and ГОСТ.
– Chemical composition: ASTM A336, GB/T 34025
– Mechanical testing: ASTM A370, GB/T 228
– NDT inspection: ASTM A388, NB/T 47013
Ultrasonic testing helps reveal the presence of any defects inside a cylinder such as cracks, porosity, inclusions, and segregation. To check critical zones, magnetic particle testing (MT) and liquid penetrant testing (PT) are used as well.
The macrostructure and the grain size are tightly monitored so as to promote uniformity and attain mechanical properties. Upon request, third-party inspection and certification documents can be provided.
Technical Specifications of 15CrMo Forged Cylinders
Basic technical features consist of the following:
– Tensile strength: 450–700 MPa
– Elongation: 18%–22%
– Hardness: 120–240 HB
Heat treatment techniques like normalizing, quenching, and tempering are among the methods used for refining grain structure as well as providing better fatigue resistance.
Each forging is subjected to extensive non-destructive testing. Any flaws such as white spots, shrinkage cavities, cracks, or segregation are prohibited beyond the specified limits.
The arrangement of flow lines has been planned so as to strengthen the load capacity in the pressure-critical areas.
Supply Condition and Traceability
Products are supplied in heat-treated condition, including:
- Normalizing
- Normalizing + tempering
- Quenching + tempering
Available delivery states:
- As-forged
- Rough machined
- Semi-finished
- Fully machined
Each product is delivered with complete documentation:
- Material certificates
- Chemical analysis reports
- Mechanical testing reports
- Heat treatment records
- NDT reports
- Dimensional inspection reports
All forgings are marked for full traceability.
Applications in Petrochemical and Energy Industries
Our forged compressor cylinders are widely used in:
- Catalytic cracking units (FCC)
- Hydrogen circulation compressors
- Reforming units
- Natural gas booster stations
- LNG processing systems
- Ammonia and methanol production units
They are also suitable for high-cleanliness applications such as pharmaceuticals, fine chemicals, and food-grade CO₂ recovery.
Why Choose 15CrMo for Compressor Cylinders
15CrMo is widely used in petrochemical compressor cylinders due to its balanced performance:
- Good high-temperature strength
- Resistance to oxidation and creep
- Stable mechanical properties under cyclic loading
- Suitable for hydrogen environments with proper heat treatment
Compared with standard carbon steels, 15CrMo provides better long-term stability in high-temperature and high-pressure service conditions.
Product Specifications Table
| Item | Specification |
| Material | 15CrMo / 12Cr1MoV / 2.25Cr1Mo |
| Process | Forging + Heat Treatment |
| Heat Treatment | Normalizing / Q&T |
| Tensile Strength | 450–700 MPa |
| Hardness | 120–240 HB |
| Standards | ASTM / GB / ГОСТ |
| Inspection | UT / MT / PT |
| Delivery Condition | Rough / Machined |
FAQ – Forged Compressor Cylinders
What is a forged compressor cylinder?
A forged compressor cylinder is a pressure-bearing component manufactured through forging processes to achieve higher strength, better internal structure, and improved fatigue resistance compared to cast parts.
Why use 15CrMo for compressor cylinders?
15CrMo offers excellent high-temperature strength and oxidation resistance, making it suitable for petrochemical compressors operating under high pressure and temperature.
What standards are followed in manufacturing?
Products are manufactured according to ASTM, GB, and other international standards, with full mechanical testing and non-destructive inspection.
Can you provide customized compressor cylinders?
Yes, customization is available based on drawings, material requirements, and operating conditions.
Contact and Customization
We provide customized forged compressor cylinders based on specific operating conditions and technical drawings. For detailed specifications, pricing, and delivery time, please contact our technical team.
